FluoTag®-Q anti-GFP

Confocal image of HeLa cells expressing the mitochondrial marker Tom70-GFP. Cells were immunostained with FluoTag-Q anti-GFP Atto647N (green).

Confocal images of HeLa cells expressing the mitochondrial marker Tom70-GFP (green). Cells were immunostained with FluoTag-Q anti-GFP Atto647N (red). Nuclei are stained with DAPI (blue).

  • Scale bar: 10 µm.
  • Scale bar: 20 µm.

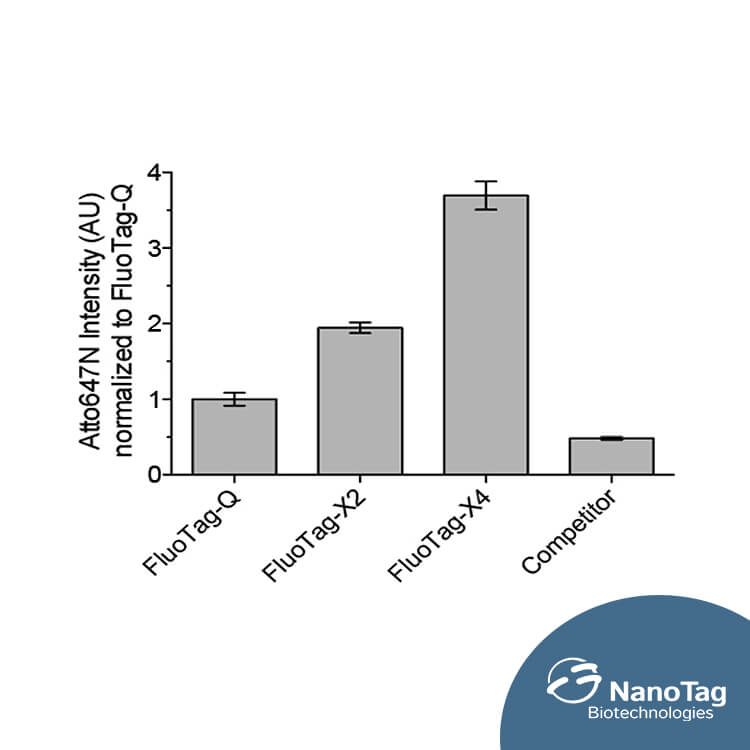

FluoTags anti-GFP coupled to Atto647N. Ratios of FluoTag/GFP intensities per cell (HeLa) normalized to the FluoTag-Q/GFP ratio.

SKU: woo-long-sleeve-tee-1 Category:

Description

FluoTag®-Q anti-GFP is derived from an in-house developed single-domain antibody (sdAb) that recognizes GFP and its most common derivatives with high affinity and specificity. For a complete specificity chart see the Product Reactivity Chart below. In our FluoTag-Q series, each fluorophore is coupled to exactly one FluoTag, which in turn binds to its target molecule in a monovalent fashion. The high binding affinity and a high coupling efficiency of > 95% guarantees a highly linear relation between target molecule number and fluorescent intensity. This enables you to directly count your target molecule of interest. The fluorophore is located exceptionally close to the recognized epitope (< 1.5 nm), which is ideal for all microscopy techniques.

  • Antigen: GFP
  • Specificity: Recognizes native GFP, mEGFP, superfolder GFP, Emerald and most common CFP and YFP variants. It does not cross-react with mCherry, mRFP, dsRed, mTagBFP or their most common derivatives. For more detailed information see the Product Reactivity Chart below.
  • Produced in: E. coli
  • Concentration: 5 µM protein, 5 µM fluorophore
  • Recommended dilution for IF/ ICC: 1:1000
  • Available fluorophores: Abberior® Star 488, Abberior® Star RED, Abberior® Star 580, Abberior® Star 635P, Atto 488, Atto 542, Atto 580, Atto 647N, Sulfo-Cyanin 3, Sulfo-Cyanin 5. For other fluorophores please contact us.

Product List

PRODUCT NAMEVOLUMECATALOG NUMBERORDER AT
FluoTag-Q anti-GFP20 µlN0301Buy online
FluoTag-Q anti-GFP200 µlN0301Buy online

This information is provided without liability and may be subject to change without prior notification.
